PRODUCT - SK machine terminal series
Main uses

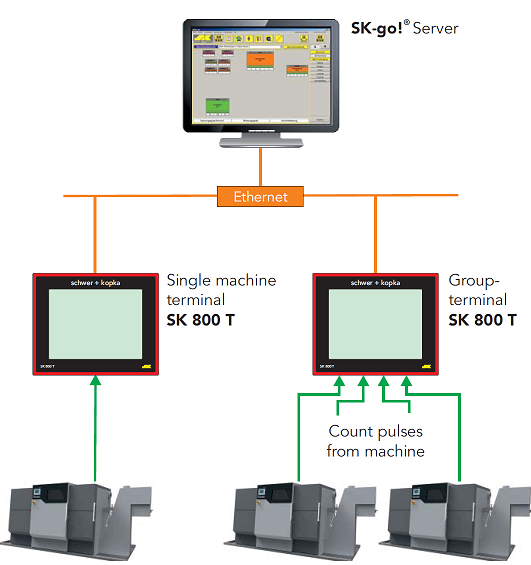

SK Machine terminal is communication unit between connected machine(s) and MES. It is also a comprehensive information center for the machine operator.
Machine terminal displays production conditions (e.g. amount, target speed etc) and information such as setting sheet, quality note from MES.
While production, machine terminal sends to MES the actual production state such as running/stop/finished, stop code, amount etc.
＜MES functions＞- Report machine status run or stop
- Input and report machine down code
- Input and report batch exchange
- Input and report used tools
 |
 |
 |
| Home | Job | Stop code |
| Status/Speed/Parts Counter | To Do List (job selection from list) | Select interruption code (can be changed) |
Main advantage
Simple and intuitive operation
Easy connection to machine
RFID reader
Line up
SK200T
Low cost, the smallest touch screen terminal
- for single machine
- 4.3" color touch screen
- Ethernet connection or optional W-LAN
- 2 input / 2 output
- optional barcode connection
- dimensions W150 x H100 x D35 mm
SK600T
Compact touch screen terminal
- for single or group of up to 32 machines
- 10.4" color touch screen
- fanless PC with Windows 10
- Ethernet connection or optional W-LAN
- optional count module for direct connection of up to 4 machines
- option RFID reader
- optional barcode connection
- USB interface

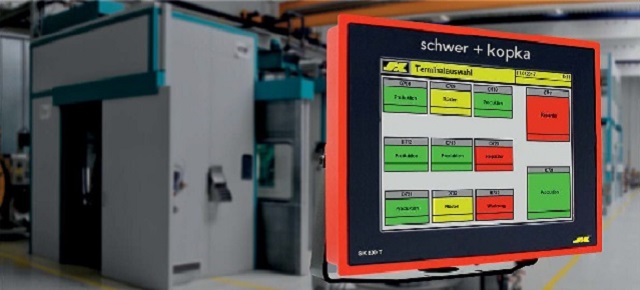

SK800T
High end Terminal with large Touch-Screen
- for single or group of up to 64 machines
- 15" color touch screen
- fanless PC with Windows 10
- Ethernet connection or optional W-LAN
- optional count module for direct connection of up to 4 machines
- option RFID reader
- optional barcode connection
- USB interface
SK-IK-COUNTADAPTOR
Connection unit for count pulse signals
- count adapter is available in 4 versions for connecting 8, 16, 24 or 32 machines
- 1 signal output to the machine to lock the machine e. g. in case of a missing down code (adjustable)
- Ethernet connection or optional W-LAN
- integrated power supply unit
- supplied in a rugged, lockable control cabinet housing
